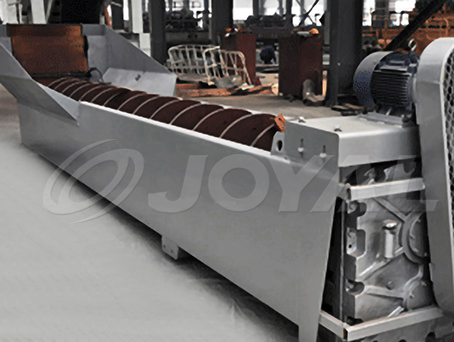

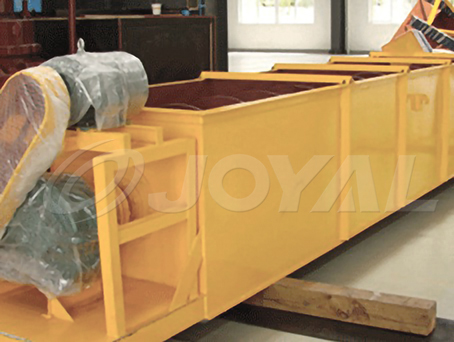

Screw Sand Washing

Inquiry joyal@crusherinc.com

The JOYAL screw sand washing machine is mainly used for sand processing, electric pole factory, building work site and concrete dam, various sands classifying and dewatering. This machine has three functions: washing, dewatering, classifying.

Free Chat Online
  • Screw Sand Washing
  • Screw Sand Washing
  • Screw Sand Washing
  • Screw Sand Washing

Features

1.High degree cleaning-up
2.Reasonable structure
3.Large capacity
4.Low power consumption

Working Principle

The screw washer adopts inclination of 15°,under the water tub, three weir plates form the sediment pool, the screw head is immersed in this pool, the screw is driven by electric motor through reducer rotating continuously, the fresh water is feeding from porous plate at bottom of sediment pool.

Technical data

Model Spiral Diameter (mm) Number of Spiral (pcs) Feeding Size (mm) Capacity (t/h) Water Consumption (m3/h) Motor Power (kw) Overall Dimensions (mm) Weight (t)
XL-762 762 1 <10 75 9-63 11 9070×2650×1530 5.20
2XL-762 762 2 <10 140 20-150 2×11 9070×3250×1530 7.45
XL-914 914 1 <10 100 10-80 15 9070×2650×1638 6.35
2XL-914 914 2 <10 200 60-300 2×15 9070×3510×1638 11.30
XL-1118 1118 1 <10 175 13-168 22 9070×2830×1900 12.70
2XL-1118 1118 2 <10 350 60-600 2×22 9070×3890×1900 16.50
