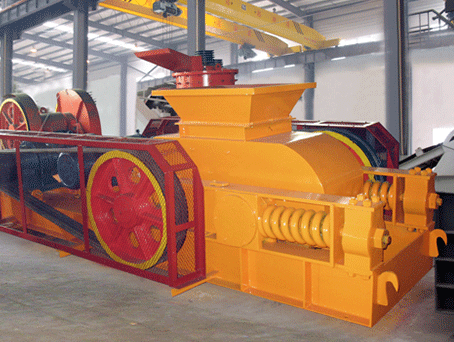

Roller Crusher

Inquiry joyal@crusherinc.com

The roller crusher has widely application in the industries of mining, building materials, chemical industry, metallurgy, etc. The roller crusher can do secondary and fine crushing of materials with middle hardness or middle minus hardness, such as mineral, rocks, coke, coal, slag, scoria, and fire-proof material, etc.

Free Chat Online
  • Roller Crusher
  • Stone Crusher
  • Roller Crusher

Features

1. low energy consumption;
2. adjustable space between rollers of the crusher, thus improving the capacity;
3. the movable and fixed rollers are interconnected by the coupling, thus obviating the frequent replacement of the belts.

Working Principle

The fixed part of roller and movable roller are driven by the motor via reducer and v-belt, the raw materials fall into the part between the two rollers from inlet of the machine. The two rollers rotates inward simultaneously. The materials are extruded, crushed and ground, then the end products come out from the bottom of this crusher.

Technical data

Model Feeding Size (mm) Output Size (mm) Capacity (t/h) Motor Power (kw) Weight (t) Overall Dimension (mm)
2PG400×250 <35 ≤2-8 2-10 2×5.5 1.3 2110×870×810
2PG610×400 <65 ≤2-20 5-20 2×15 3.9 3510×1420×1030
2PG750×500 <75 ≤2-25 10-40 2×18.5 9.5 4210×1630×1260
2PG800×600 <80 ≤2-25 12-45 2×22 10.8 4505×1780×1320
2PG1000×700 <100 ≤3-30 20-65 2×30 14.9 5310×2175×1595
2PG1200×800 <120 ≤3-35 35-80 2×37 25.5 6290×2270×1870
2PG1500×800 <130 ≤3-45 50-120 2×75 33.7 7460×2410×2290
2PG1600×1000 <150 ≤3-50 60-140 2×90 41.2 8220×2680×2475

The capacity above is tested as per medium hard limestone.
