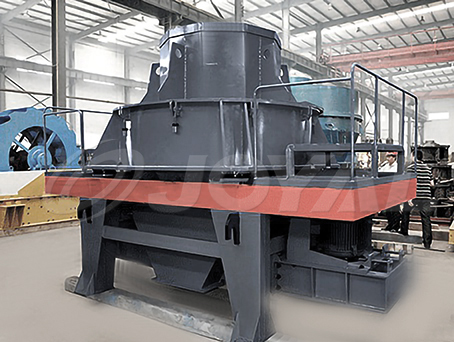

PCL Sand Making Machine

Inquiry joyal@crusherinc.com

The JOYAL PCL Sand Making Machine is widely used for fine crushing and coarse grinding in mining, rocks, fireproof materials, glass raw material and metallurgy residues. The impact crusher is much more professional than other crushers in crushing hard and anti-abrasion materials such as carborundum, sintered bauxite, magnesite and so on. The Impact Crusher is usually used as sand making machine in the sand washing plant.

Free Chat Online
  • PCL Sand Making Machine
  • Sand Making Machine
  • PCL Sand Making Machine
  • Sand Making Machine

Features

1. Simply structure and low investment.
2. High efficiency and low
3. Scaleboard of the impeller is easy in maintenance and durable.
4. Appliable to fine and coarse grinding.
5. Slightly influenced by the moisture content of the material. The max moisture content is 8%.
6. Suitable for crushing materials of middle and high hardness.
7. Cubic shaped end products, high density of piling up and low iron pollution.
8. Working noise < 75db, and little dust pollution.

Working Principle

The materials fall into the crusher and be divided into two parts. One part goes into the high-speed-running impeller of the machine, and the other part goes around the impeller. The two parts materials bump into each other at a high speed and are crushed in this way under the centrifugal force. The end products go out from the bottom of the machine, and users can get the required products size after materials are screened by the vibrating screen.

Technical data

  Model Impeller Speed (rpm) Max. Feeding Size (mm) Capacity (t/h) Motor Power (kw) Weight (t) Overall Dimension (mm)
PCL-600 2000-2600 30 12-30 2×30 5.6 2800×1500×2030
PCL-750 1500-2500 35 25-55 2×45 7.3 3300×1800×2440
PCL-900 1300-1700 40 50-80 2×55 12.1 3750×2120×2660
PCL-1050 1100-1450 45 70-120 2×110 16.5 4480×2450×2906
PCL-1250 950-1200 45 80-160 2×132 22 4563×2650×3176
PCL-1350 800-1200 50 120-220 2×160 26 5340×2940×3650

The capacity above is tested as per medium hard limestone.
